Steel shopping

Steel shopping





Steel shopping

1.SUPERMARKET
SBS's high rise steel structure building supermarket is made of high quality materials and through professional production line.

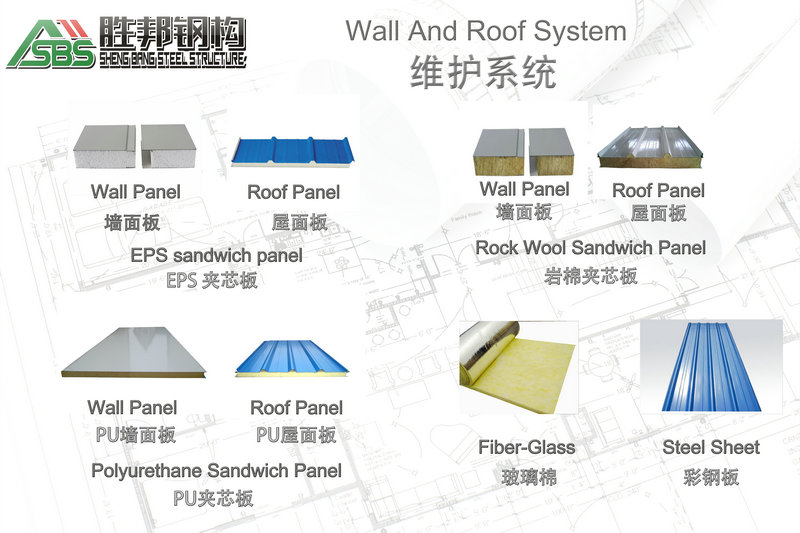

2.Steel Structure Panel material
The steel structure panel material included EPS sandwich panel,Rock wool sandwich panel,PU sandwich panel,fiber-glass ,steel sheet.

Steel structure panel material: including wall panel and roof panel
Sandwich core materials: EPS, PU, rock wool, glass wool
Thickness of sandwich panels: 50mm, 75mm, 100mm, 150mm
Single color plate material thickness: 0.376mm, 0.426mm, 0.476mm





3.Product detials

1.Opinions 1)We can supply all kinds of steel structures, steel building, metal building, modular house, steel frame for warehouse, workshop, garage etc, steel beams, other riveting and welding parts.
2)We can also make and develop new parts according to customers' drawings and detailed dimensions.
2. Specifications 1) Size: MOQ is 200m2, width X length X eave height, roof slope
2) Type: Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors
3) Base: Cement and steel foundation bolts
4) Column and beam: Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable cross-section
5) Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc
6) C or z purlin: Size from C120~C320, Z100~Z200
7) Roof and wall panel: Single colorful corrugated steel sheet 0.326~0.8 mm thick, (1150 mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50 mm ~ 100 mm.
8) Accessories: Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter, etc
9) Surface: Two lays of Anti-rust Painting
10) Packing: Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ
3. Design Parameters If you need we design for you, pls supply us the following parameter together with detail size
1) Live load on roof (KN/M2)
2) Wind speed(KM/H)
3) Snow load (KG/M2)
4) Earthquake load if have
5) Demands for doors and windows
6) Crane (if have) , Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure!















































4.Advantages:

1) Wide span: Single span or multiple spans, the max span clear distance is 36m, without middle column.
2) Low cost: Unit price range from USD35 to USD70/square meter FOB according to customer's request.
3) Fast construction and easy in installation.
4) Long service life: More than 50 years.
5) Environmental protection, stable structure, earthquake resistance, water proofing, and energy saving.

5.Guidance installation


Shengbang Steel Structure Company can supply the guidance installation service.Usually steel structure building is a large installation engineering. If customers may need the professional technical engineer to supervise the installation on site overseas, the customer must to inform before 1 months from leave the China . But customer should coordinate with us for following aspects:
Customer should provide:
1) Translator or assistant on site.
2.)All costs raised including:
A. visa fee
B. Round trip flight ticket
C. Accident insurance for the supervisor during the period
D. Accommodation
E. Daily meals
F. Internet
G. Local traffic fee (if any)
3) The customer should pay the engineer with supervision fee, which can be negotiated and decided by both.
4)Customer has the responsibility to provide necessary security system to protect the supervisor, especially in some unrest countries.
There have some guidance installation picture:
