Prefabricated steel dairy

Prefabricated steel dairy

1.SBS STEEL STRUCTURE ANIMAL HUSBANDRY
Steel structure building is a new type of prefabricated steel structure barn. The main steel frame is formed by linking up H-section, Z-section and U-section steel components while roof and wall using a variety of panels. It meets the requirement for the sheep pan perfectly in terms of the strength. The load bearing parts are mainly steel structures, including steel columns, steel beams, steel structural basements, bracing systems for wall and roof. The Main Structure is usually made of Q345 Steel while the purlins and bracing system are made of Q235 Steel. They are the most common steel materials used for china steel structure workshop in China.

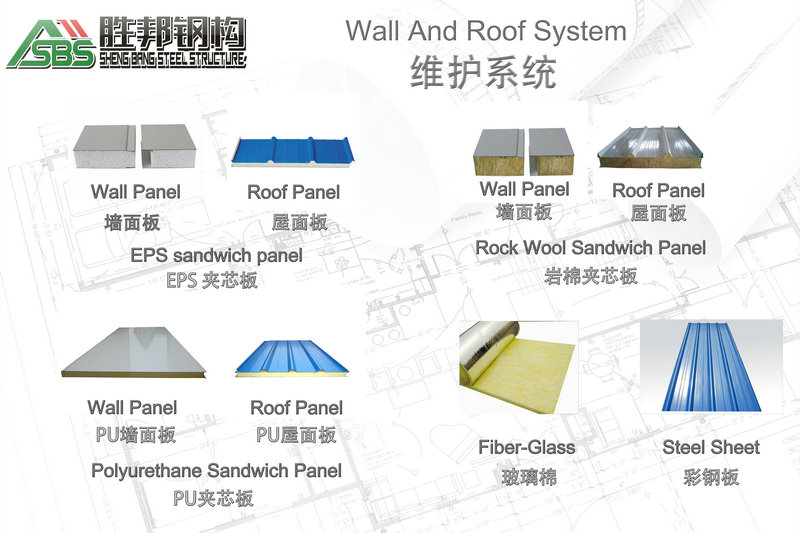

2.Steel structure panel materials

steel structure panel Material:including wall panel and roof panel

Sandwich plate core material material: EPS, rock wool, PU, glass wool

Sandwich board material thickness: 50 mm, 75 mm, 100 mm, 150 mm

Single color plate material thickness: 0.376 mm, 0.426 mm and 0.476 mm

4.steel structure design common specifications are as follows:

1) "technical specification for cold formed steel structures" (GB50018-2002)
2) "just construction quality acceptance" (GB50205-2001)
3) "for the welding of steel structure technical specification" (JGJ81-2002-2002 J218)
4) "technical specification for steel structure of high rise civil building" (JGJ99-98)

5.commonly used in steel and steel properties:

1) carbon structural steel: Q235B, Q345B, etc..
2) high strength low alloy structural steel;
3) high quality carbon structural steel;
Special steel of alloy structural steel 4;
5) special purpose just;
6) walls and roofing materials are optional: corrugated steel plate, EPS sandwich plate, rockwool sandwich plate and polyurethane sandwich plate.

6.Transportation

Steel structure is mainly composed of steel column, steel beam, steel frame and the rigid support and so on, so steel structure component volume is larger, The mainly transportation for export is as follow:

1). Seaworthy
In general, after customer order, our engineering technology department design the steel structures will be according to the 40 'HQ and 40' open top container inside size to design the shipment, in most cases, we use 40 'HQ and 40' open top shipping container shipment to pack steel structures.

2).Package for the steel frame
If you want to use the 40 HQ container to transportation the whole steel structure product. You can do the steel frame to package ,use the cable wire to fix. But you must paid for the steel frame and baling charges.

Contact way

1)FOSHAN SHENGBANG STEEL STRUCTURE CO., LTD
2)Add:Pingtang Industrial Park, Shipeng Village, Shishan Town, Nanhai District,
3)Foshan, Guangdong Province, China
4)Tel:0086-757-63323396/0086-757-18900873268 Fax:0086-757-81196682
